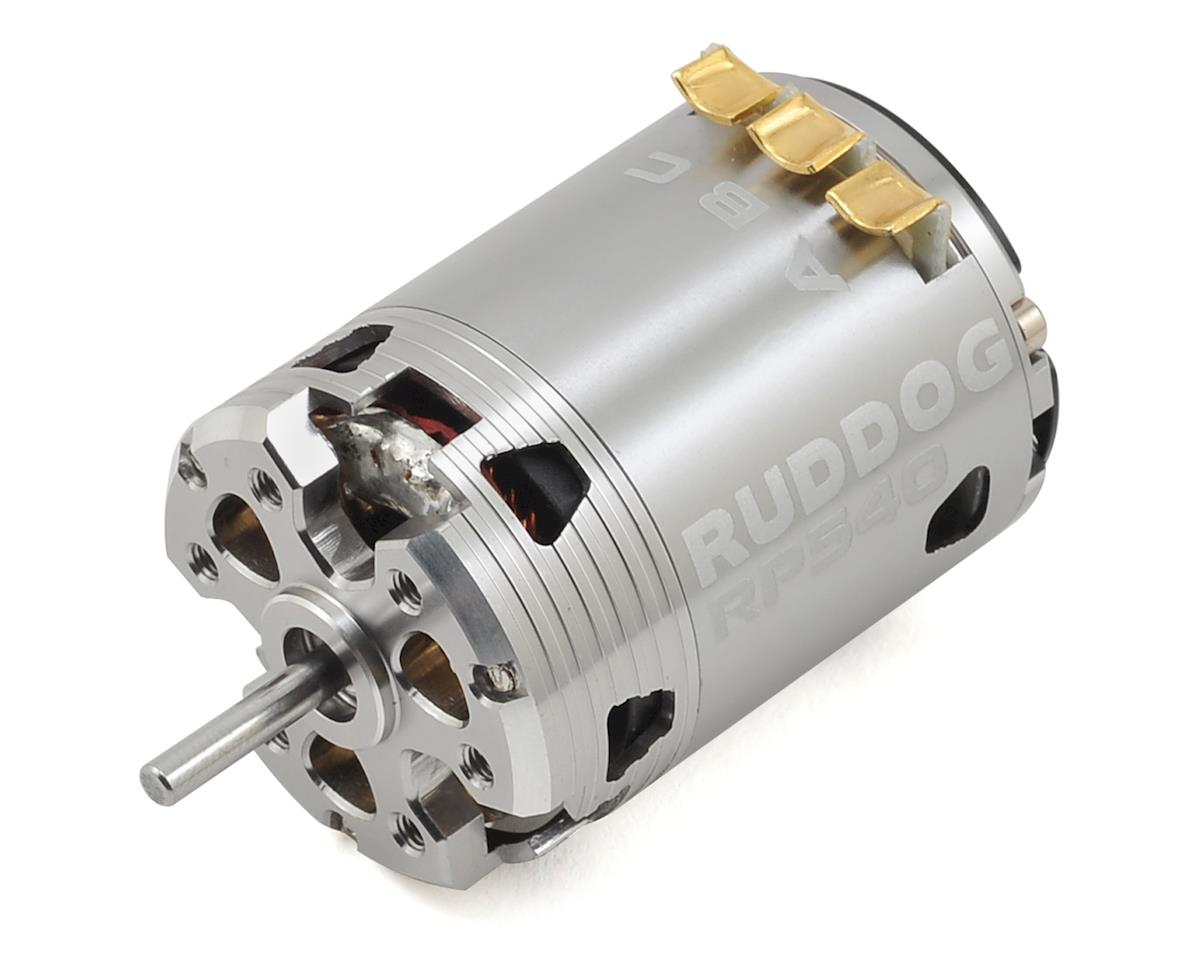

The RUDDOG RP540 sensored competition brushless motor was developed using the latest technology in terms of manufacturing and production of competition grade motors. Weighing in at a lightweight 170g the motor is made using highest grade materials including Japan-made steel stator plates and high-temperature 99.9% pure copper wire. Large venting openings improve cooling and provide constant performance over the full run, even in hot conditions. The silver can color looks good on, and off the track.
Specifications:
Weight:165-175g depending on turn count
Voltage:2S/7.4V
Size:540 = 36×51.75mm
Shaft diameter:3.175mm
KV rating:5350 RPM/V
Power:390 Watts
Internal Resistance:0.0087 Ohm
Max. Current:94A
Rotor:￠12.5*￠5
Timing:Adjustable from 20 to 60°

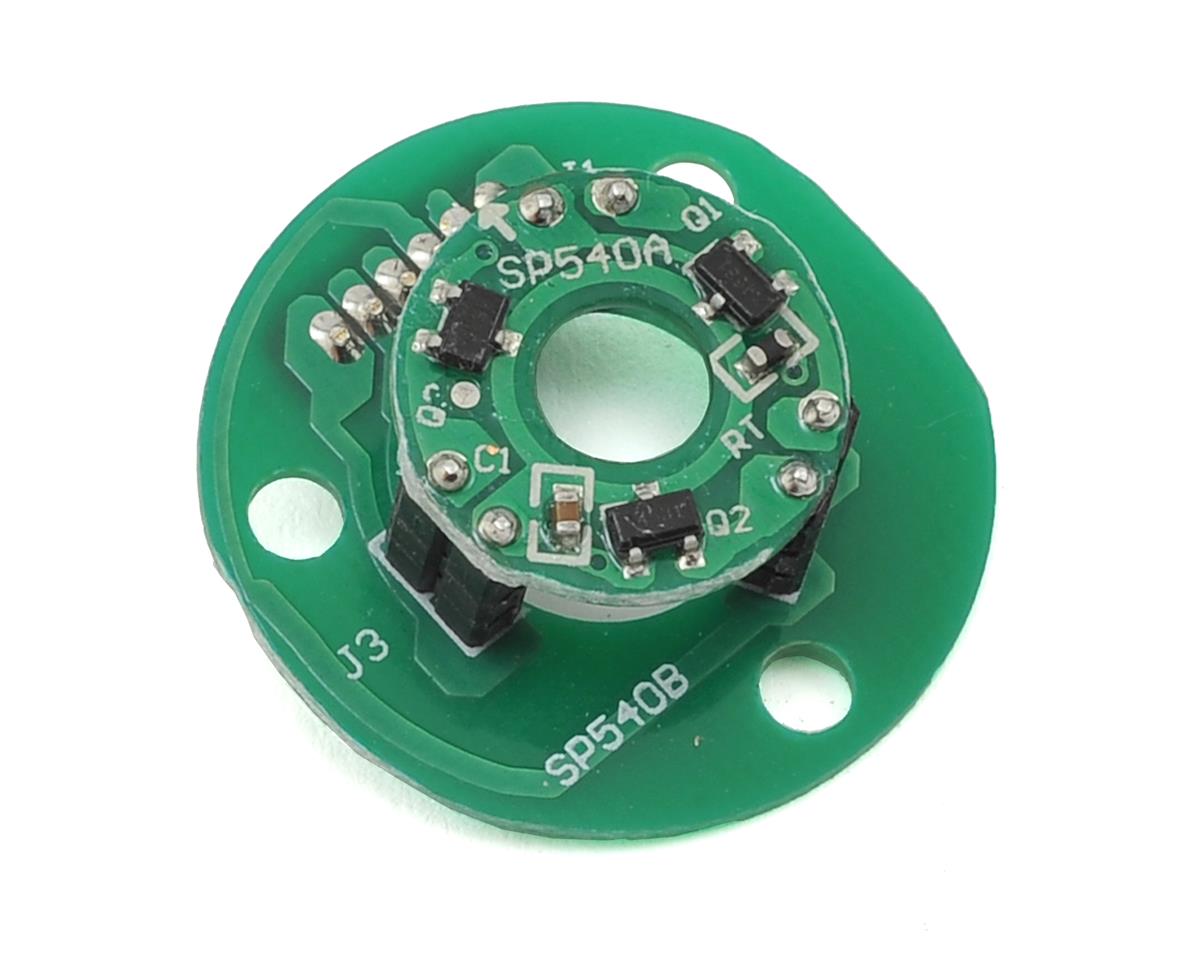

Sensor:Standard Sensor Port / exchangeable
EFRA legal:Yes
Includes:
- 6.5T RP540 Motor
- 200m Sensor Lead
- Manual in German and English language
This product was added to our catalog on December 8, 2020
Jayson Punancy Verified Owner Thursday, Apr 18 2019 (about 6 years ago) Ruddog RP540 540 Sensored Brushless Motor (6.5T) Awesome Motor! Racing this motor in my Tekno EB410 4wd buggy with a Hobbywing ESC with no added timing in the 4wd Mod Class. I leave the other guys on the straits easy. I feel like this is more like a 5.5t motor. Motor rips and runs pretty cool and has an awesome price point compared to comparable motors. So far so good! 5 of 6 customers found this review helpful. View all reviews
